| MAIN FEATURES |
| • |
100-240V AC input provides worldwide power conversion capability. |
| • |
Adjustable 12-24V output design fits specific notebook models and LCD needs. |
| • |

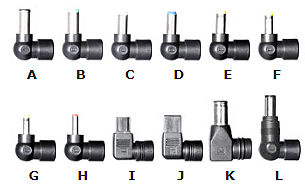

12 pieces of tip connector for use with most major notebook brands such as IBM, Dell, Toshiba, Compaq, Asus, Acer, HP, Sony and More . |
| • |
Extra USB port built in for iPODs, PDAs, Cell Phones, MP3 Players and more. |
| • |
RoHS compliancy is friendly to environment. |
| • |
High efficiency & full power protection. |
| • |
Free Prudent way Bag. |
| • |
Fanless, No noise. |
| • |
Box protection. |
|
|
| FEATURES |
| Output Power (Max.) |
90W |
| Overload Protection |
Yes |
| Short Circuit Protection |
Yes |
| Line Regulation |
+/- 5% |
| Load Regulation |
+/- 5% |
| Switching Mode |
Universal switching-mode power adapter for notebook & LCD |
| Special Connectors |
With 12PCS tip Connector including 3 Pin Connector |
| Efficiency |
> 87% (TYP) |
|
|
| DIMENSIONS |
| Unit Size |
3.125" x 3.125" x 1.25" |
| Net Weight |
11 Ounces |
|
|
| OUTPUT |
Output Voltage
(0/+0.8V No Load) |
12V/15V/16V/18V/19V/20V/22V/24V. DC12V-24V
USB Port: 5V |
Output Voltage
(+/- 5% @typical +/- 0.8V) |
12V/15V/16V/18V/19V/20V/22V/24V. DC12V-24V
USB Port: 5V |
| Output Current |
12V/15V/16V/18V/19V/20V@4.5AMP(max)
22V/24V @3.75AMP(max)
USB Port: 2 AMP @ 5V |
|
|
| INPUT |
| Rated Input Voltage (50 - 60 Hz) |
AC120V or AC230V |
| Vibration Input Voltage Range (47-63Hz) |
AC100V-240V |
| Input Rated Current |
2.2AMP |
| Input Power |
102VA |
|
|
| ENVIRONMENTAL |
| Operating Temp. |
0 to 40°F |
| Humidity |
20% to 80% |
| RoHS Ready |
Yes |
|
